Roof Rail Sets: RR1-FD-TX50
RR1-FD-TX50_L3
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
SERIES-MODEL:
- Ford Transit (TX50 - 2014+)
- High Roof
- 148" Wheelbase/Extended
- Fan
- 480W (3 x 160W - Newpowa 160S-12I)
- RR1-FD-TX50
RR1-FD-TX50_L2
SERIES-MODEL:
PV/ARRAY EXAMPLE:
VEHICLE EXAMPLE:
- RR1-FD-TX50
- Ford Transit (TX50 - 2014+)
- Low/Medium/High Roof
- 148" Wheelbase
- Fan
- 480W (3 x 160W - Newpowa 160S-12I)
RR1-FD-TX50_L1
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- RR1-FD-TX50
- Ford Transit (TX50 - 2014+)
- Low/Medium Roof
- 130" Wheelbase
- Fan
- 480W
(3 x 160W - Newpowa 160S-12I)

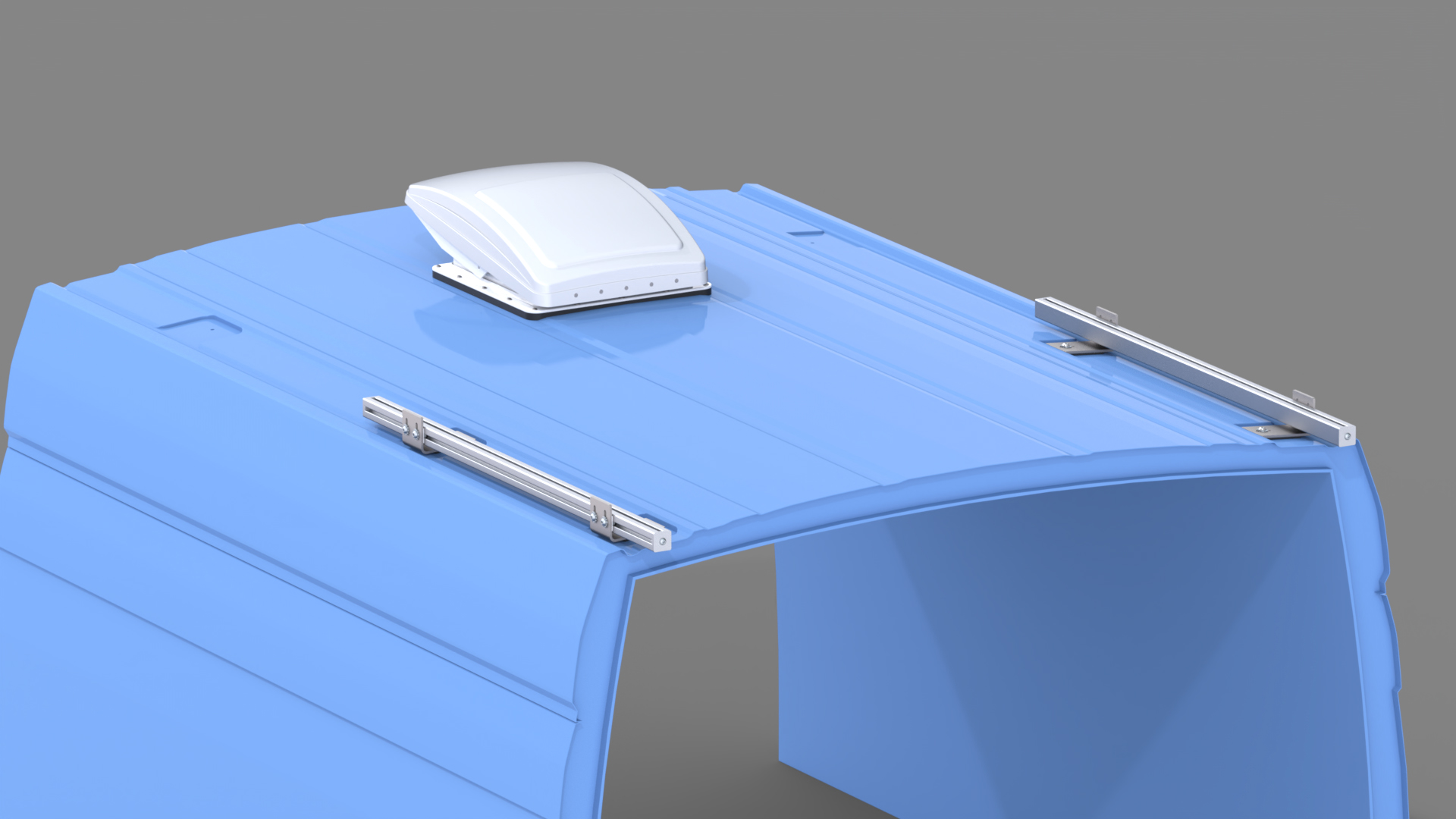

RR1-FD-TX50_L1-IN
SERIES-MODEL:
PV/ARRAY EXAMPLE:
VEHICLE EXAMPLE:
- RR1-FD-TX50
- Rails Fixed Internally
- Ford Transit (TX50 - 2014+)
- Low/Medium Roof
- 130" Wheelbase
- Fan
- 660W
(2 x 330W - Panasonic HIT-330)
RR1-FD-TX50-1_F1
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-168
- Array Length (Min / Max): 1535mm [60.4in] / 1615mm [63.6in]
- Array Width (Min / Max): 350mm [13.78in] / 2130mm [83.9in]
- Ford Transit (TX50)
HR / L2 / 148" - Fan
- 660W
(2 x 330W - Panasonic HIT-330)
RR1-FD-TX50-1_F2
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-168
- Array Length (Min / Max):
1535mm [60.4in] / 1615mm [63.6in] - Array Width (Min / Max):
350mm [13.78in] / 2130mm [83.9in]
- Ford Transit (TX50)
HR / L2 / 148" - Fan
- 660W
(2 x 330W - Panasonic HIT-330)
RR1-FD-TX50-1_F4
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-176
- Array Length (Min / Max):
1615mm [63.6in] / 1695mm [66.7in] - Array Width (Min / Max):
350mm [13.78in] / 2130mm [83.9in]
- Ford Transit (TX50)
HR / L1: 130" - Fan
- 400W (1 x 400W - Solaria PowerXT-400)

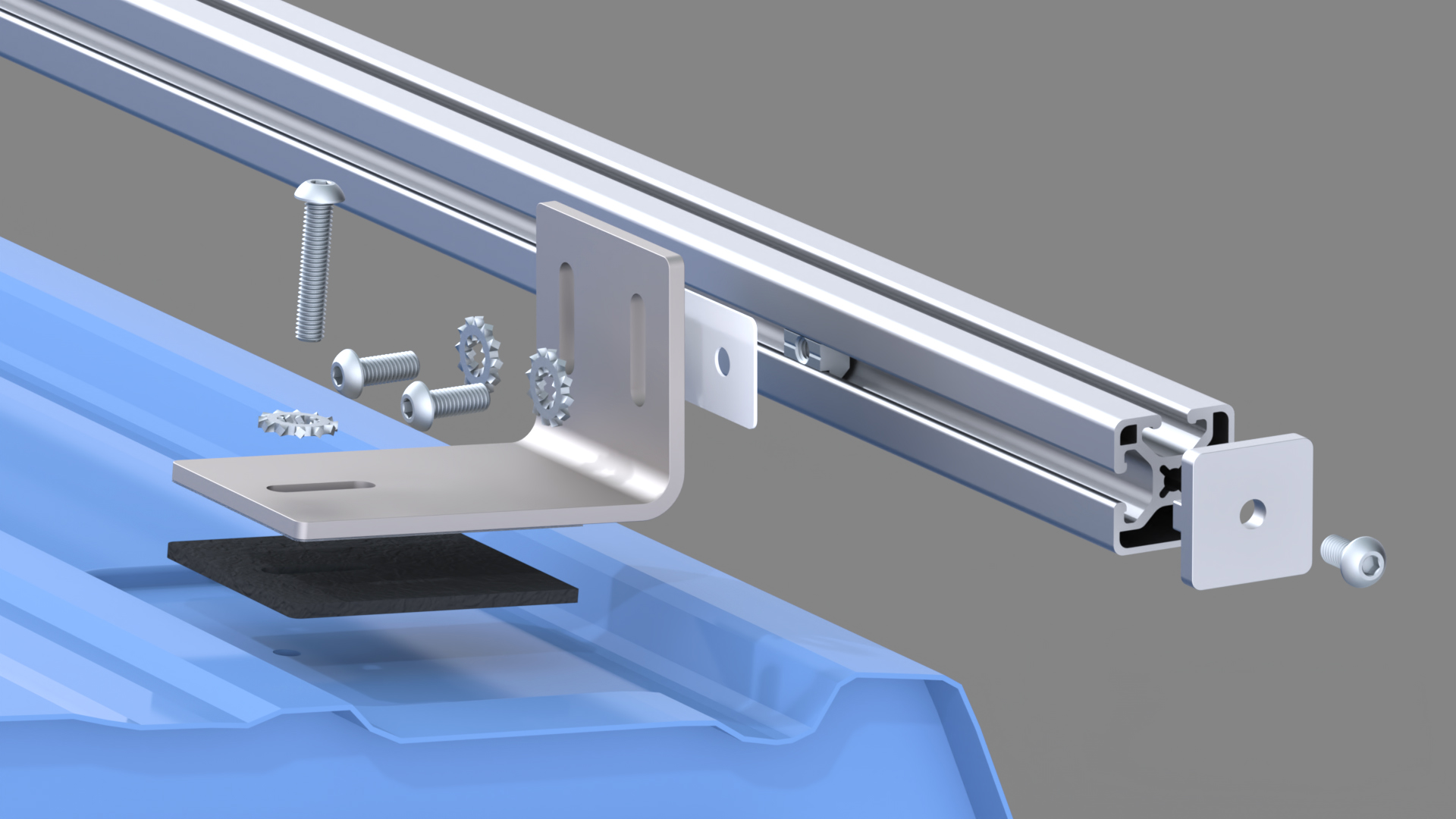

RR1-FD-TX50-1_F3
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-192
- Array Length (Min / Max):
1775mm [69.9in] / 1855mm [73in] - Array Width (Min / Max):
350mm [13.78in] / 2130mm [83.9in]
- Mercedes Sprinter (VS30/NCV3)
HR / L2 / 170" - Fiamma Awning / Fan
- 420W (1 x 420W - Sunpower A420)

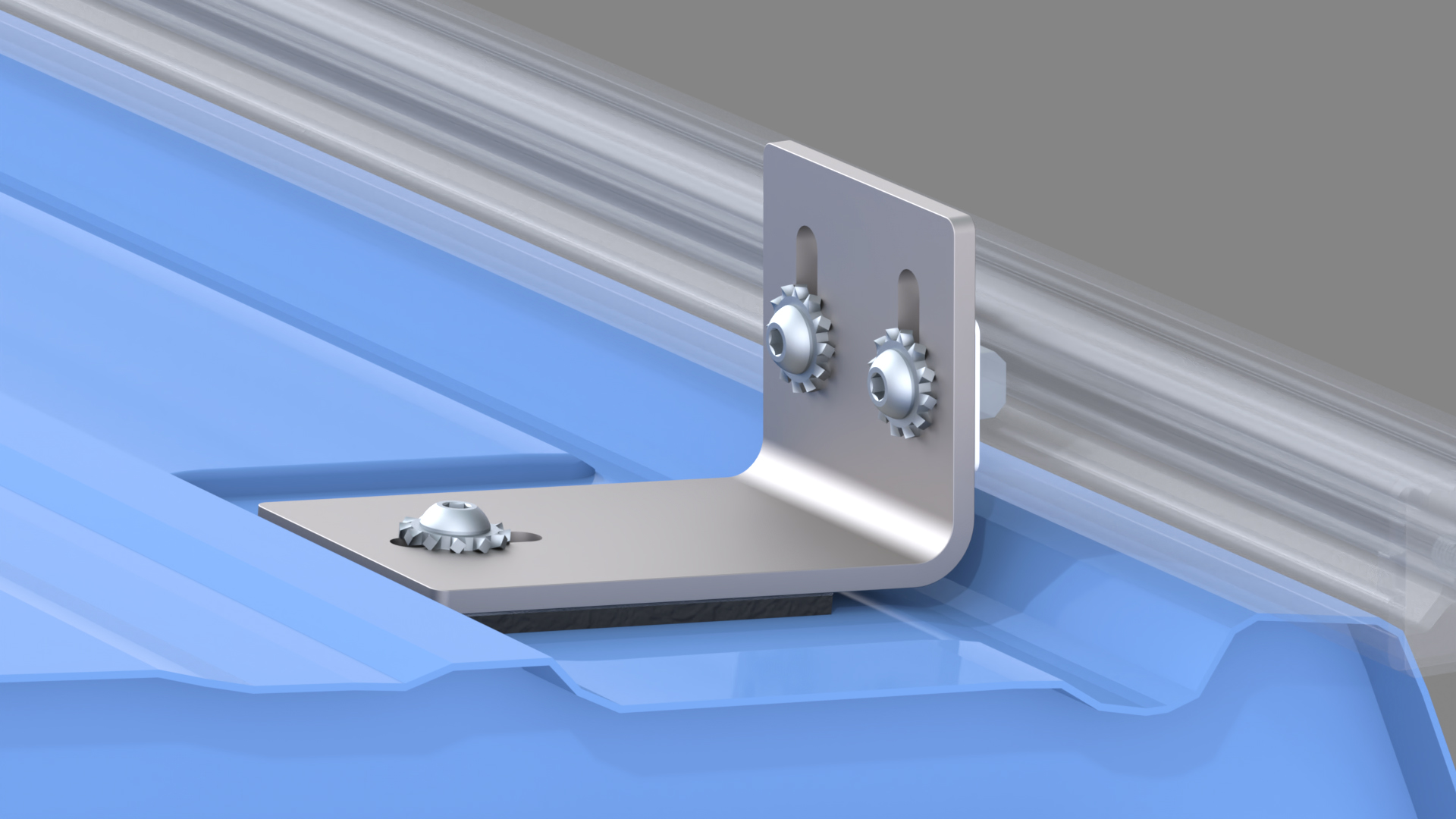

RR1-FD-TX50-1_F5
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-176
- Array Length (Min / Max):
1615mm [63.6in] / 1695mm [66.7in] - Array Width (Min / Max):
350mm [13.78in] / 2130mm [83.9in]
- Ford Transit (TX50)
HR / L1 / 130" - Fan
- 400W
(1 x 400W - Solaria PowerXT-400)
RR1-FD-TX50-1_F6
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-192
- Array Length (Min / Max): 1775mm [69.9in] / 1855mm [73in]
- Array Width (Min / Max): 350mm [13.78in] / 2130mm [83.9in]
- Mercedes Sprinter (VS30/NCV3)
HR / L2 / 170" - Fiamma Awning / Fan
- 420W (1 x 420W - Sunpower A420)

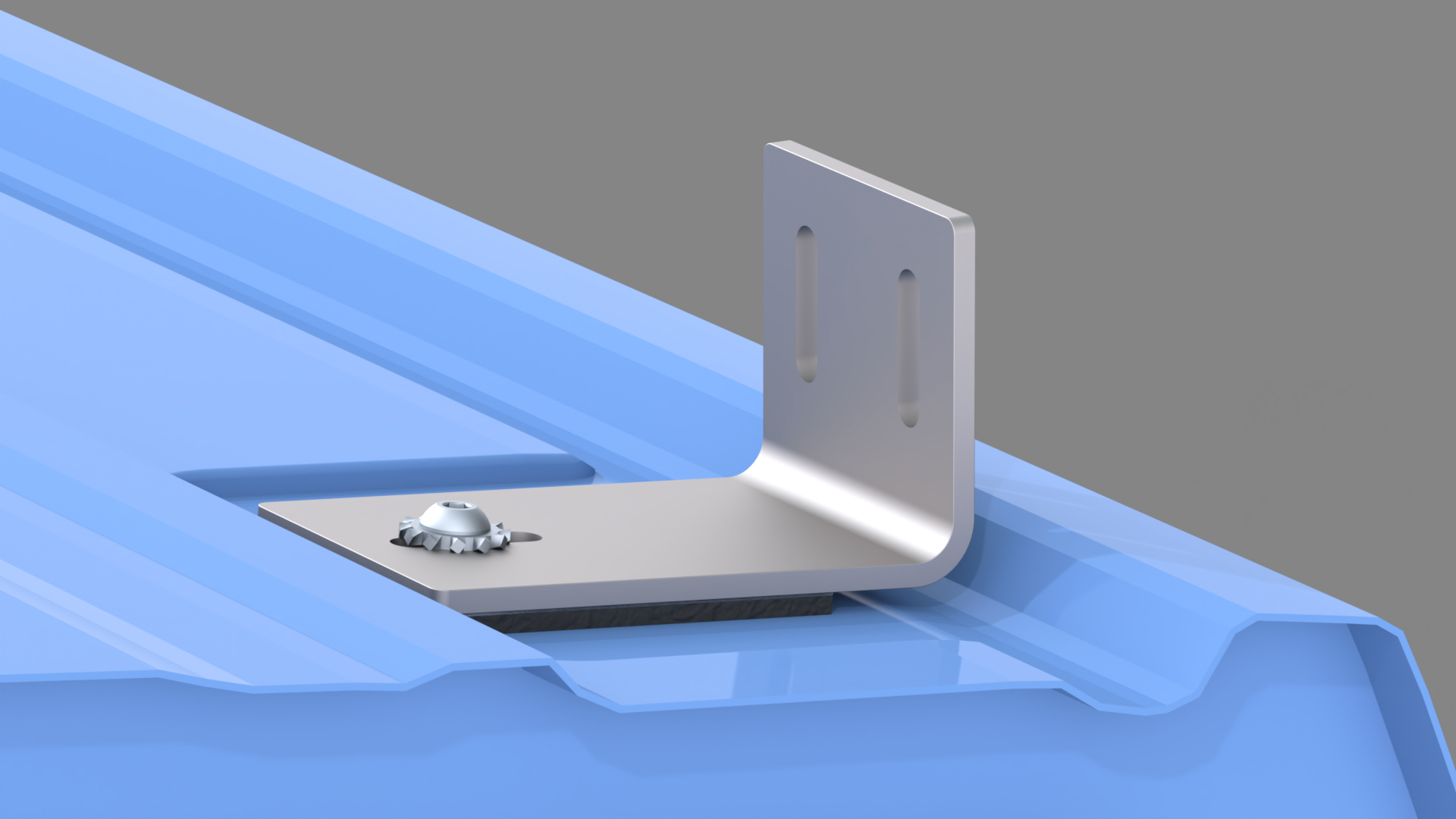

RR1-FD-TX50-1_F8
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-192
- Array Length (Min / Max): 1775mm [69.9in] / 1855mm [73in]
- Array Width (Min / Max): 350mm [13.78in] / 2130mm [83.9in]
- Mercedes Sprinter (VS30/NCV3)
HR / L2 / 170" - Fiamma Awning / Fan
- 420W
(1 x 420W - Sunpower A420)

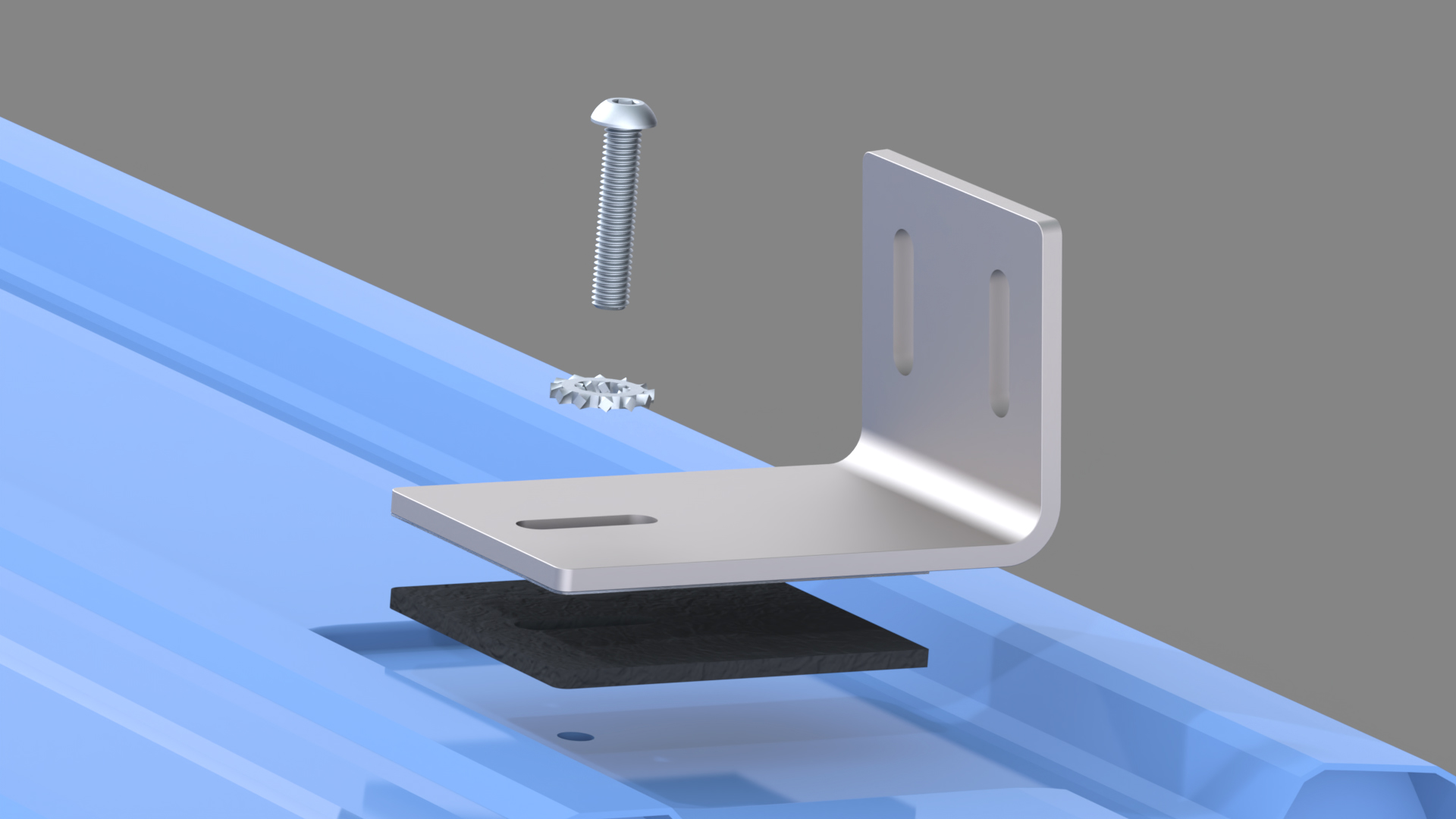

RR1-FD-TX50-1_F7
SERIES-MODEL:
VEHICLE EXAMPLE:
PV/ARRAY EXAMPLE:
- SR1-1SS-192
- Array Length (Min / Max): 1775mm [69.9in] / 1855mm [73in]
- Array Width (Min / Max): 350mm [13.78in] / 2130mm [83.9in]
- Mercedes Sprinter (VS30/NCV3)
HR / L2 / 170" - Fiamma Awning / Fan
- 420W
(1 x 420W - Sunpower A420)
- Designed to fit under rooftop cargo racks, tents, etc.
- Attaches to the factory mounting points.
- Stainless steel mounting legs with rubber pads.
- Mounting legs sold with or without T-Slot rails.
- Clear anodized 1.50″ T-Slot rails. Sold in pairs.
- Rail lengths sold per inch. Minimum / Maximum length: 36in [915mm] / 100in [2540mm].
- Zinc plated steel fasteners.
FAQ
Quam quisque id diam vel quam elementum pulvinar?
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
Ut tellus elementum sagittis vitae et leo duis ut?
Ut pharetra sit amet aliquam id diam maecenas ultricies mi.
Aliquam faucibus purus in massa?
Feugiat in fermentum posuere urna nec tincidunt praesent. Dolor sit amet consectetur adipiscing elit pellentesque habitant morbi.
Support Tab: RR1-FD-TX50
Manuals
Drawings
RR1-FD-TX50
Roof Rail Sets:
Ford Transit - TX50 Model (2014+)
Sets starting from $300
*Fans, A/C, racks & other fixtures not included and for illustration purposes.
